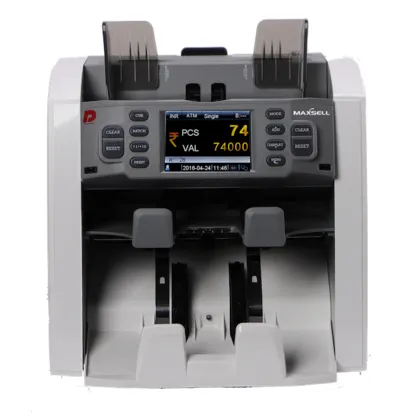

Maxsell Matrix 8122 VD

MAXSELL MATRIX 8122 Note Sorting Machine

The MAXSELL MATRIX 8122 is a high-speed, intelligent note sorting machine designed for banks, financial institutions, corporate offices, and cash-intensive businesses. With advanced detection, user-friendly features, and durable performance, it ensures seamless cash handling, counterfeit detection, and note fitness sorting at unmatched accuracy and speed.

🔹 Key Specifications:

Hopper Capacity: 500 sheets

Reject Capacity: 30 sheets (programmable up to 100)

Stacker Capacity: 300 sheets

Speed: 1500 notes/min (piece count), 1000 notes/min (detection), 800 notes/min (fitness)

Power Consumption: 60W

Weight: Approx. 8.5 kg

Interfaces: RS232, USB, Printer, LAN connections

Display: TFT high-definition color touch screen with customizable settings

🔹 Advanced Features:

Mixed Value Batch Function – Effortlessly count mixed denominations and pause at a preset value.

Fitness Function – Sorts banknotes by quality, detecting folds, holes, soil, tears, and tape.

Counterfeit Detection – Multi-layer security with UV, MG, MT, IR, FL detection.

Sorting Options – Sort by denomination, face, orientation, non-issuable notes, pre-2005 notes, and value count.

Serial Number Recognition – Beta-tested technology for enhanced tracking.

Fitness Sorting (Optional) – Identifies soiled notes, ATM-fit notes, taped or folded notes.

Smart Monitoring – Automatic sensor and component monitoring with real-time date & time display.

Durable Design – Dust-proof build with professional LCD display and rugged keyboard panel.

✅ Benefits:

High-speed counting with accuracy and precision

Reliable detection of counterfeit and unfit currency

Easy to operate with a touch screen display & customizable settings

Compact design with low maintenance requirements

Perfect for banks, NBFCs, currency exchange firms, retail chains, and large corporates
