Maxsell Matrix 8130
Description

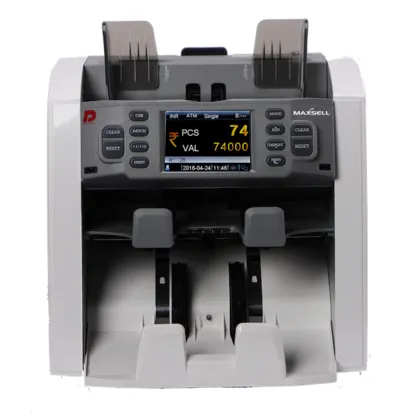

MAXSELL MATRIX 8130 Note Sorting Machine
The MAXSELL MATRIX 8130 is a fully automatic, high-performance note sorting machine engineered for banks, NBFCs, currency exchanges, and businesses handling heavy cash flow. With advanced counterfeit detection, fitness sorting, and high-speed counting, it delivers unmatched accuracy, efficiency, and reliability in cash management.
🔹 Key Specifications:
Usage/Application: Banking & Financial Institutions
Machine Type: Fully Automatic
Counting Speed: 1200 notes/minute
Hopper Capacity: 500 notes
Stacker Capacity: 300 notes
Reject Capacity: 50 notes (expandable to 100)
Power Consumption: 60W
Power Supply: 100-240V AC, 50/60Hz, 3.0A
Interfaces: RS232, USB, Printer, SD Card, LAN
Weight: Approx. 8.5 kg
Minimum Order Quantity: 1 Piece
🔹 Advanced Features:
Fitness Sorting Technology – Detects soiled, taped, folded, and ATM-fit notes using double CIS technology.
No Updates Needed – Automatically supports new ₹2000 & ₹500 notes for piece counting.
Counterfeit Detection – Multi-layer detection with UV, MG, MT, IR, Tape Detection, CIS.
Sorting Options – Sorts notes by denomination, orientation, face, non-issuable, pre-2005 notes, and value count.
TFT Color Display – High-definition color backlit LCD screen with rugged keyboard panel for ease of use.
Serial Number Recognition – Optional feature for advanced tracking & record-keeping.
Data Recording – SD card support to record counting data & serial number information.
Smart Monitoring – Real-time date & time display with automatic sensor and component monitoring system.
Easy Upgrades – Sorting function upgrades via SD card for future currency updates.
✅ Benefits:
High-Speed & Reliable Counting – Up to 1200 notes per minute with accuracy.
Enhanced Security – Detects counterfeit, soiled, taped, and folded notes instantly.
Compact Design – Small footprint, perfect for bank counters and cash-heavy businesses.
Future-Ready – Easy upgradation for new notes and advanced sorting functions.
User-Friendly Operation – TFT display, rugged keypad, and data storage for professional use.
The MAXSELL MATRIX 8130 Note Sorting Machine is the ideal solution for banks and businesses seeking speed, precision, counterfeit detection, and fitness sorting in one compact, reliable device.
